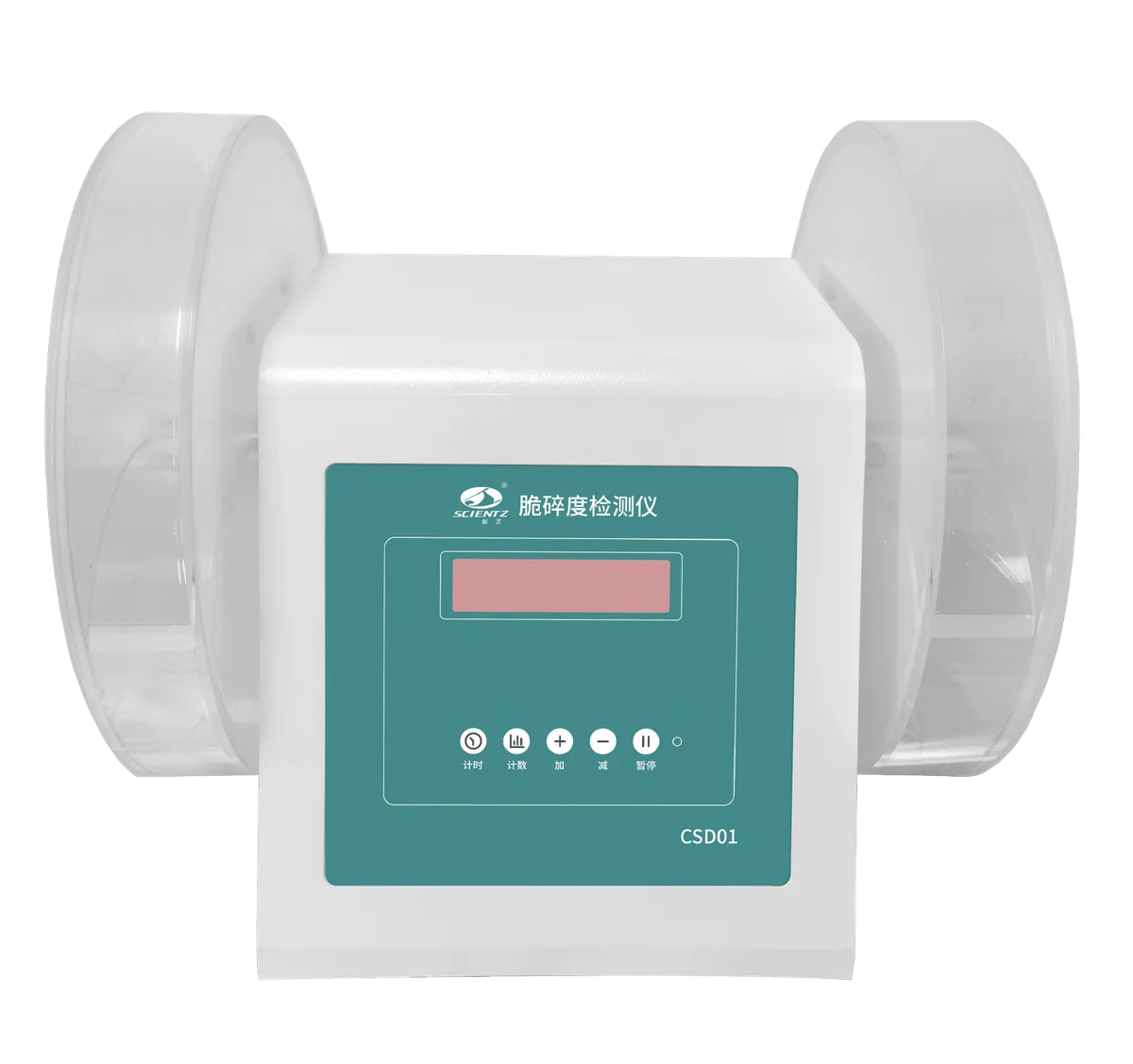

TABLET FRIABILITY TESTER (Fragility detector)

CSD01 Brittleness Detector is an instrument specially used to detect the brittleness of tablets produced in accordance with the provisions of the Chinese Pharmacopoeia.

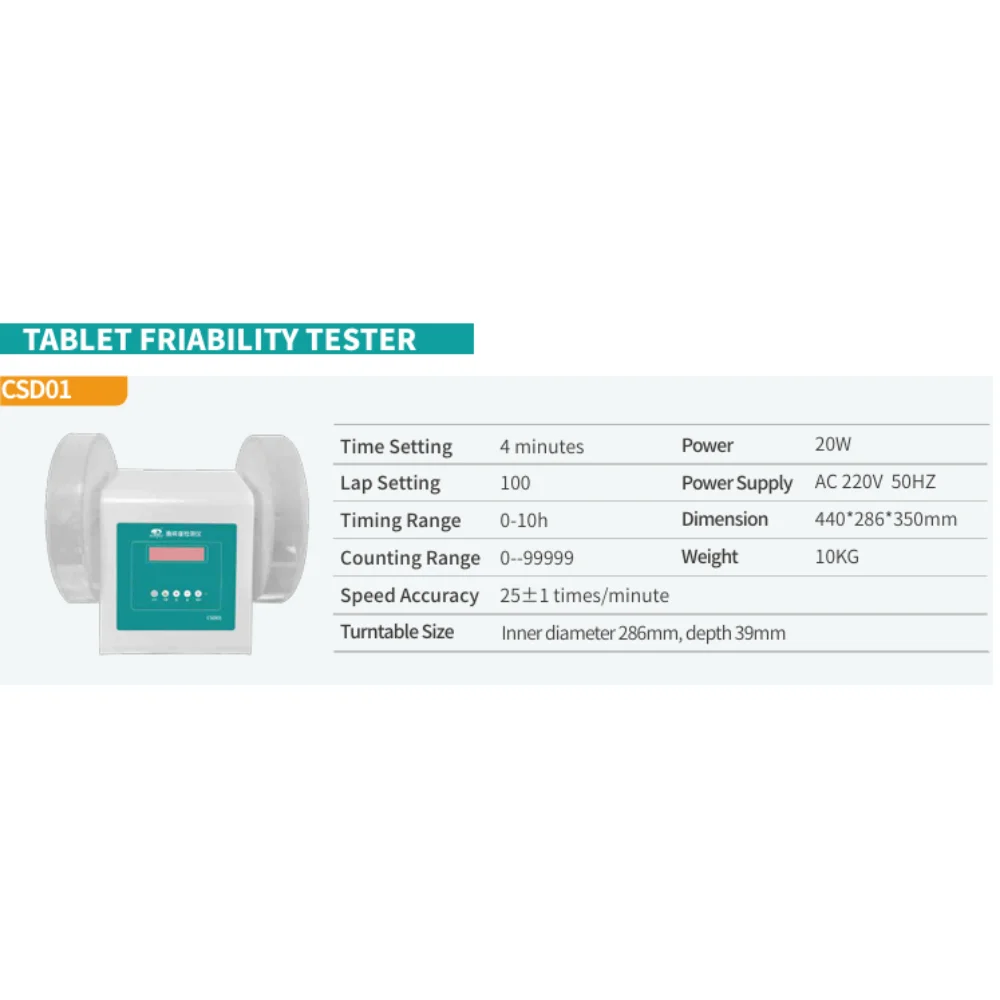

The inner diameter of the instrument is 286mm, the depth is 39mm, the rotation speed is 25±1 rpm, one side is an openable transparent wear-resistant plastic cylinder, there is an arc spacer extending from the center to the outer wall, the inner diameter is 80mm±1mm, when the cylinder rotates, the tablet will roll, the cylinder will rotate once, the tablet will roll or slide to the cylinder wall or other tablets.

Origin: SCIENTZ-China
