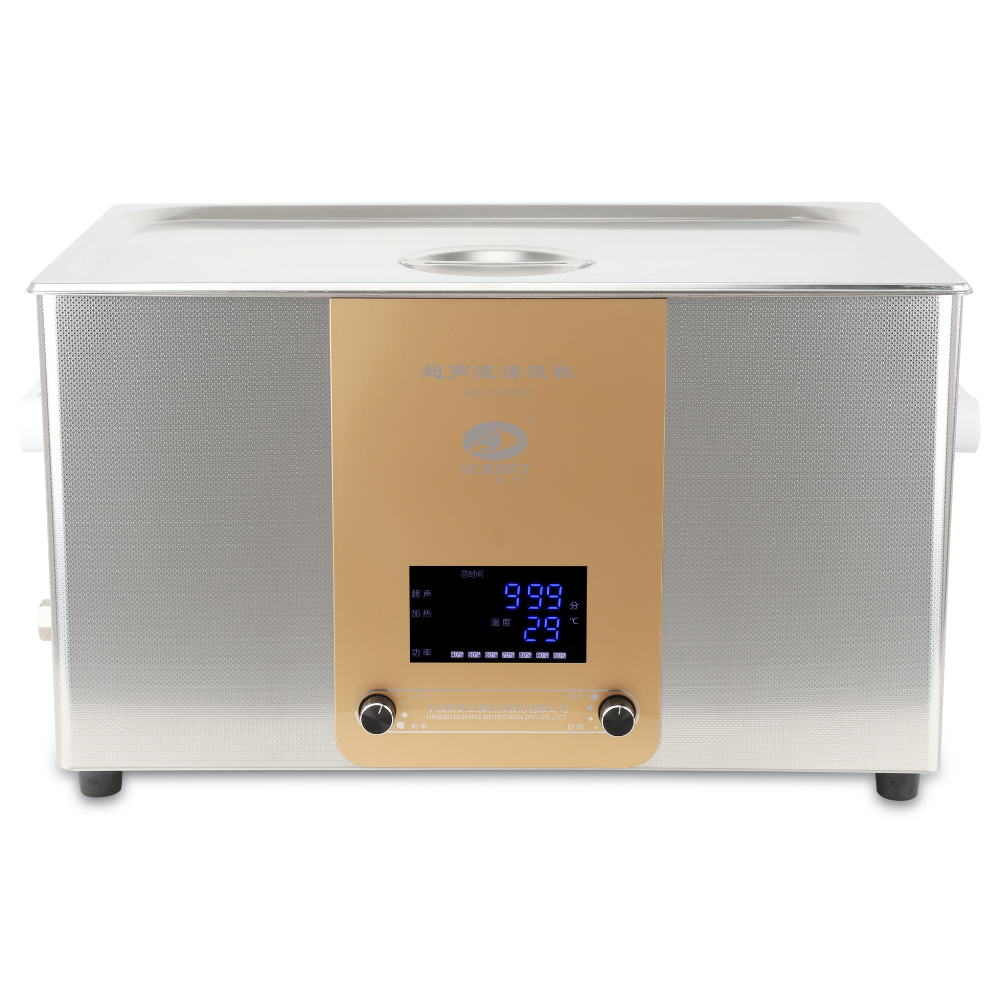

ADJUSTABLE HEATED ULTRASONIC CLEANER – DTD SERIES
Models:
SB-3200DTD、SB-5200DTD、SB-5200DTD、SB-4200DTD、SB25-12DTD、SB25-12DTD、SB-800DTD
Technical Parameters
- Large-screen LCD display
- Display the parameters setting menu
- Adjustable power: 40%–100%
- Total working time setting: 1–999 min
- Digital setting for ultrasonic cleaning time
- Working time countdown display
- Display actual temperature of the cleaning tank
- Temperature setting range: room temperature – 80℃
- Timing range: 1–600 minutes adjustable
- Equipped with a special stainless steel basket and reduce sound cover
- Shell and cover made of stainless steel
- Equipment controlled by single-chip controller
- Latest working parameters can be stored in memory after power-off
| Model | Inner Tank (L×W×H mm) | Volume (L) | Frequency (KHz) | Power (W) | Heating Power (W) | Drainage |
|---|---|---|---|---|---|---|
| SB-3200DTD | 300×155×150 | 6 | 40 | 180 | 400 | / |
| SB-5200DTD | 300×240×150 | 10 | 40 | 200 | 800 | √ |
| SB-5200DTD | 300×240×150 | 10 | 40 | 250 | 800 | √ |
| SB-5200DTD | 300×240×150 | 10 | 40 | 300 | 800 | √ |
| SB-4200DTD | 300×240×200 | 14.4 | 40 | 400 | 800 | √ |
| SB25-12DTD | 500×300×150 | 22.5 | 40 | 500 | 1000 | √ |
| SB25-12DTD | 500×300×150 | 22.5 | 40 | 600 | 1000 | √ |
| SB-800DTD | 500×300×200 | 30 | 40 | 800 | 1000 | √ |
Notice: With the heating function of the ultrasonic cleaner, the actual temperature may be 2–8℃ higher than the displayed temperature for thermostatic ultrasonic models. Optional ultrasonic thermostatic cleaner available.
